Wall Mount Enclosures

Compact, secure and space-efficient rack solutions for networking, telecom, audio-video and lab applications.

TRUE POWER Wall Mount Enclosures are specially designed for small networking, domestic applications, Audio Video, Telecom and Lab environments.

Fabricated from high-quality CRCA steel, these enclosures are CNC programmed, punched, bended, welded and powder coated to meet the highest quality standards.

Standard configurations include a welded frame integrated with side walls, vented top cover with fan mounting provision, rear wallmounting provision, and a lockable front glass door for security and visibility.

Available in 4U to 15U variants with depths of 400mm / 450mm / 500mm / 600mm and standard width of 550mm.

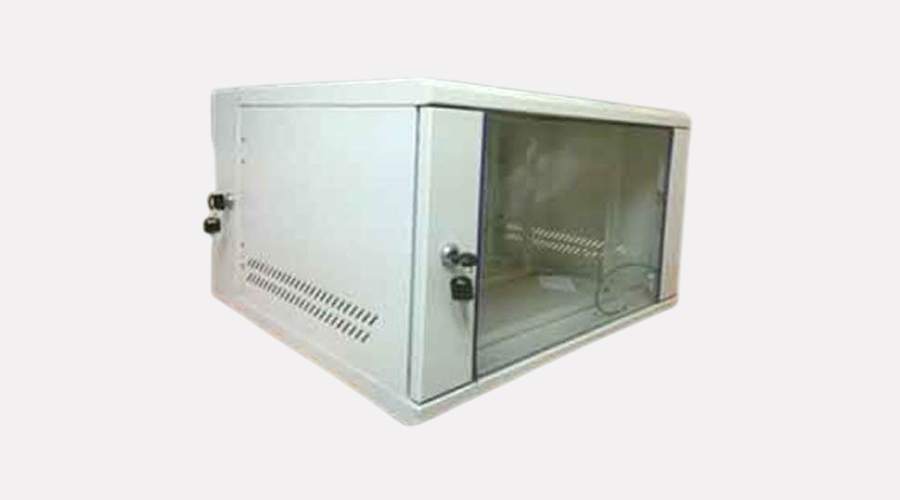

Wall Mount 1
Wall Mount 2

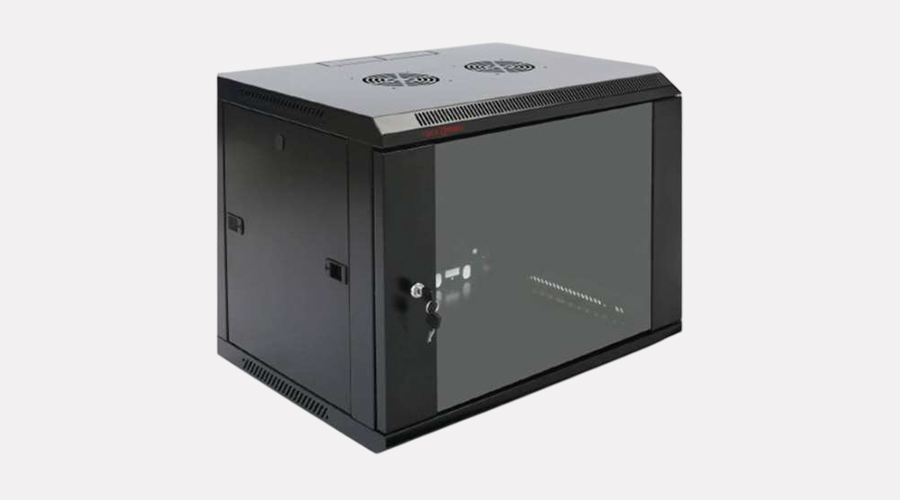

Wall Mount 4

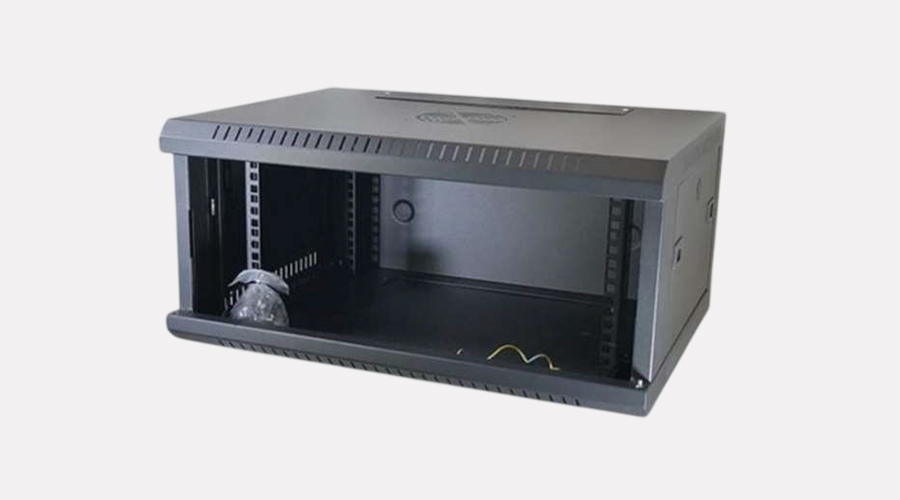

Wall Mount 5
Standard Accessories
  • Power Distribution Units
  • 1U Horizontal Cable Manager
  • Fan
  • Hardware Packet
Orderable Accessories
  • Cantilever Tray
  • 2U Horizontal Cable Manager
  • Additional Hardware Packet

Key Features

  • Conforms to DIN 41494 or equivalent ISO Standards
  • Adjustable 19” equipment mounting verticals
  • Depth adjustable mounting slots
  • Precision engineering and efficient configuration
  • Top and bottom ventilation with cable entry provision
  • Cooling fan mounting provision
  • Pretreated powder coated finish
  • Grounding and bonding options
Rack Standard Construction Front Door Equipment Mounting Mounting Angle Standard Finish Top & Bottom Cover Static Load
DIN 41494 or Equivalent Welded Lockable Toughened Glass Door DIN Standard Slots 19” Formed Steel Angles Powder Coated Vented with Cable Entry/Exit 50 kgs
