DCDB / ACDB Units
Reliable DC & AC power distribution systems for telecom, data center and industrial applications.

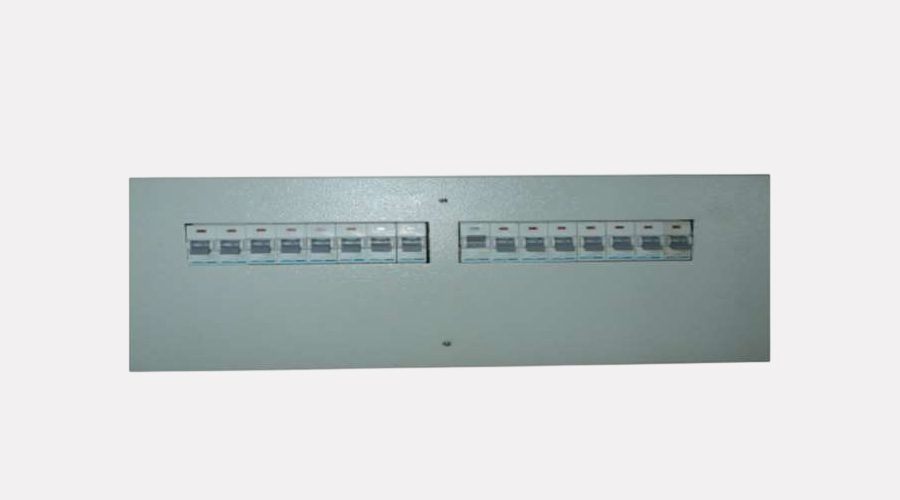

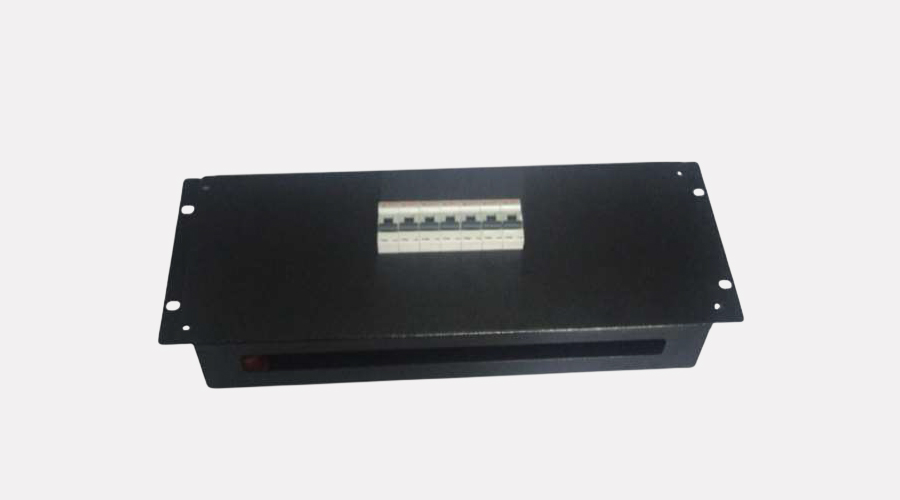

DC Power Distribution Boards (DCDB) are vital accessories for telecom racks, as most telecom equipment operates on DC voltage. Systems range from 120A to 2000A with high-quality copper busbars (20x3mm to 100x10mm) featuring tapped holes for secure cable termination.
Standard models are available in 19", 21", or 23" rack sizes with optional MCB mounting. Units are available in 3U, 4U, and 6U variants depending on current rating and configuration. Custom solutions are also available for higher capacity requirements.
AC Distribution Boards (ACDB) provide reliable AC power distribution for telecom and industrial applications, ensuring protection, operational stability and scalability.
DCPS (DC Power Supply with Battery Charger)
- DC 24V – Single Source / Dual Source
- DC 48V – Single Source / Dual Source
| Type | Voltage | Current Rating | Rack Size | MCB Mounting | Busbar Size | Customizable |
|---|---|---|---|---|---|---|
| DCDB Type-1 | 24V / 48V | 120A – 2000A | 19", 21", 23" | Yes / No | 20x3mm – 100x10mm | Yes |
| ACDB Type-1 | AC 230V / 400V | Up to 300A | 19", 21", 23" | Yes / No | N/A | Yes |
DCDB Model Matrix & Dimensions
| Description | Part Number |
|---|---|
| DCDB/3U/120A/20X3 Busbar-2 | DCDB-3U-001 |
| DCDB/3U/240A/20X6 Busbar-2 | DCDB-3U-002 |
| DCDB/3U/120A/20X3 Busbar-2/DinRail | DCDB-3U-003 |
| DCDB/3U/240A/20X6 Busbar-2/DinRail | DCDB-3U-004 |
| DCDB/4U/480A/40X6 Busbar-2 | DCDB-4U-001 |
| DCDB/4U/800A/40X10 Busbar-2 | DCDB-4U-002 |
| DCDB/4U/480A/40X6 Busbar-2/DinRail | DCDB-4U-003 |
| DCDB/4U/800A/40X10 Busbar-2/DinRail | DCDB-4U-004 |
| DCDB/6U/1500A/75X10 Busbar-2 | DCDB-6U-001 |
| DCDB/6U/2000A/100X10 Busbar-2 | DCDB-6U-002 |
| DCDB/6U/1500A/75X10 Busbar-2/DinRail | DCDB-6U-003 |
| DCDB/6U/2000A/100X10 Busbar-2/DinRail | DCDB-6U-004 |
